CS Q-LEAP calibration system with DRE-01 rotation exciter

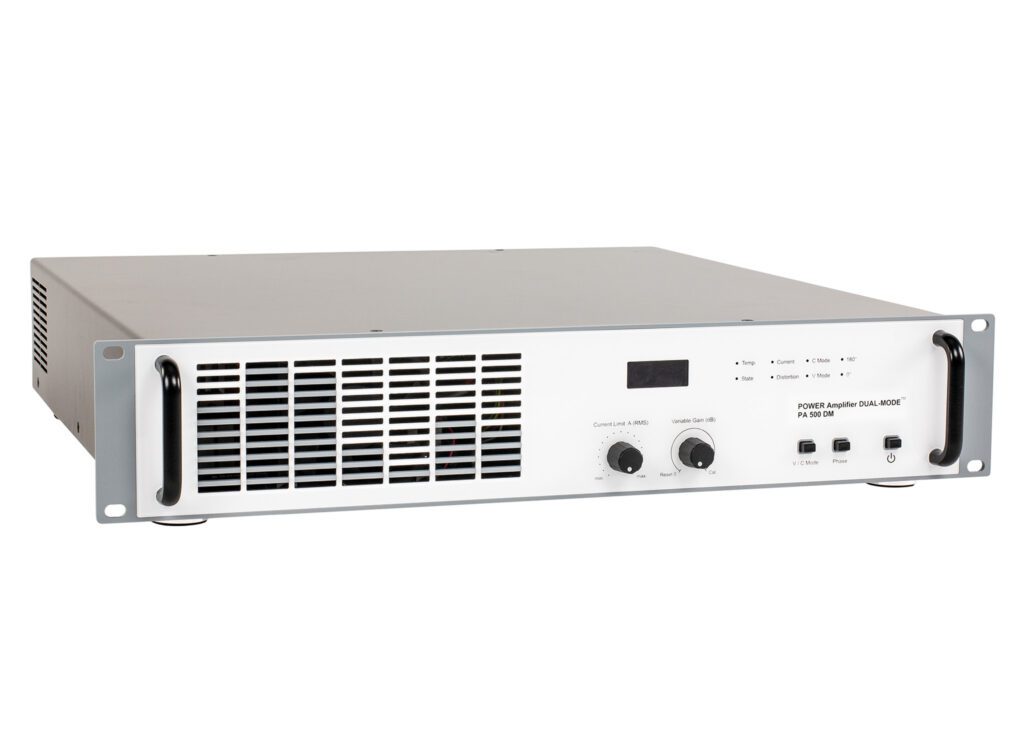

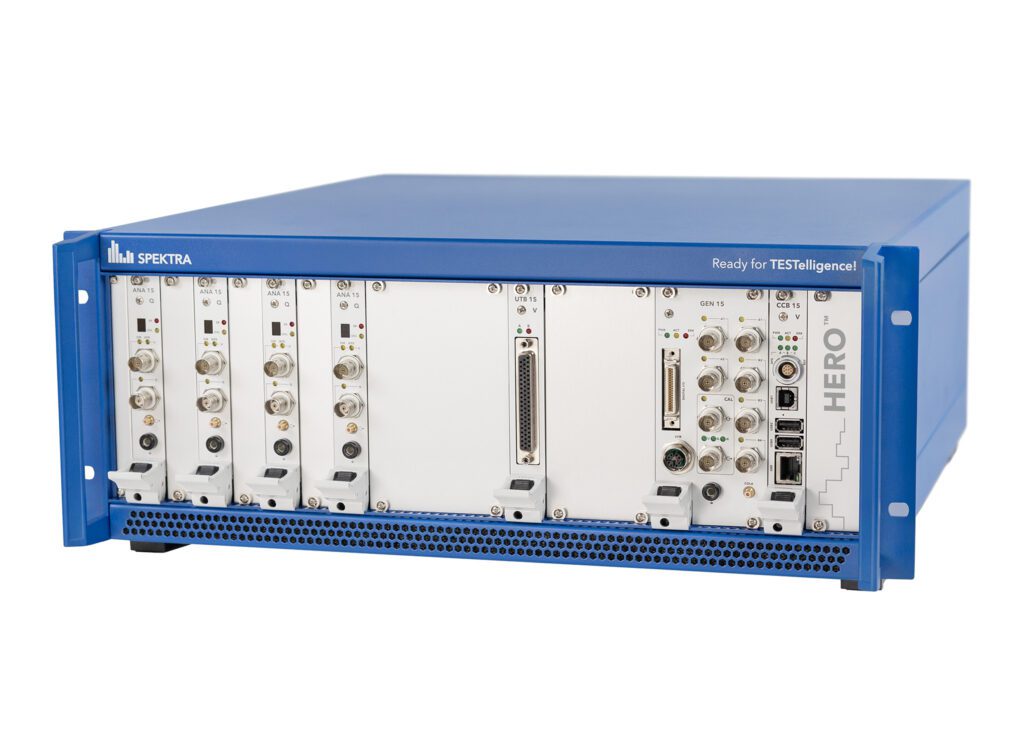

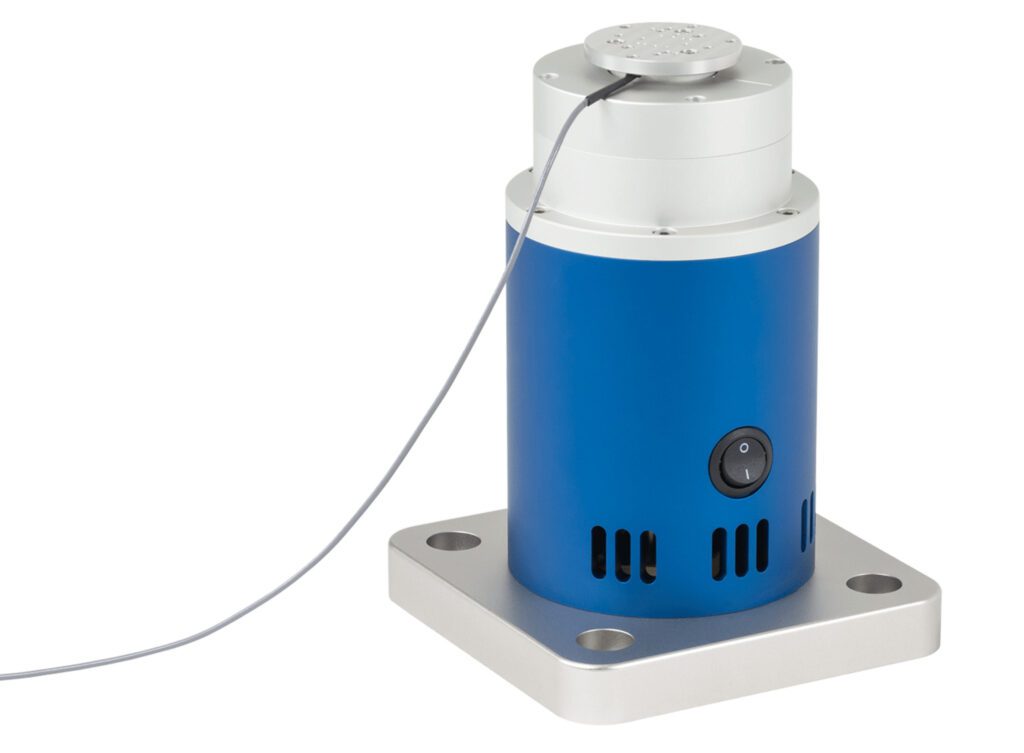

CS Q-LEAP™ calibration system with DRE-01 rotation exciter, HERO™ vibration control system, zero position controller, power amplifier and software. This system is used for the calibration of angular velocity sensors and measurement systems. Typical test items include gyro transducers (angular velocity), inertial measurement units (IMU) and rotation rate measuring systems.
The CV-10 was specifically designed to simplify your on-site calibration of accelerometers, proximity probes, velocity sensors and many more. An extensive, portable and lightweight calibration system, traceable to NIST and PTB, delivered in a rugged case – and available at low investment costs. Only 9 kg, up to 10 hours battery driven operation and powerful vibration exciters are just a few of numerous reasons why the CV-10 is the right choice for many industries like automotive, aviation, construction, condition monitoring or research and development. Accessories like the accessory set for proximity sensors or an extension module for PR sensors complement the CV-10 useful.
Applications
- calibration of accelerometers, proximity
probes and vibration velocity sensors - on-site calibration of vibration meters and
vibration test beds - vibration test system for small devices
Selected Data
- powerful vibration exciter
- frequency range: 5 Hz…10 kHz
- acceleration, max.: 200 m/s2 (20 gn)
- payload, max.: 900 g (1.9 lb)
- battery operation up to 10 h
Features
- integrated signal conditioners
• voltage, charge, IEPE, 4 mA…20 mA
• amplifier for PR transducers (option) - extension port for future options
(e.g. special sensor power supplies) - rugged case for daily on-site operation
- traceable to PTB, NIST etc.
- easy data exchange via USB
- expandable with future options






Product Details:
Key features
- Torque, max.: 0.95 Nm (sine peak)
- Frequency range:
- 1 Hz…200 Hz – traceable range for calibration
- > 200 Hz…5 kHz – extended range for testing purposes
- Traceable to PTB (German National Metrology Laboratory)
- Calibration of angular velocity sensors and measurement systems to ISO 17025: General requirements for the competence of testing and calibration laboratories
- Integrated sensor database
- Integrated e-Cal™ software for the generation of calibration certificates (print, PDF…)
- Easy data exchange with applications like ERP systems or measuring equipment databases
Technical data:
- Angle, max.: 30° (peak – peak)
- Angular velocity, max.: 5300 °/s2 (sine peak)
- Angular acceleration, max: 2500000 °/s2 (sine peak)
- Payload, max.: 0.5 kg

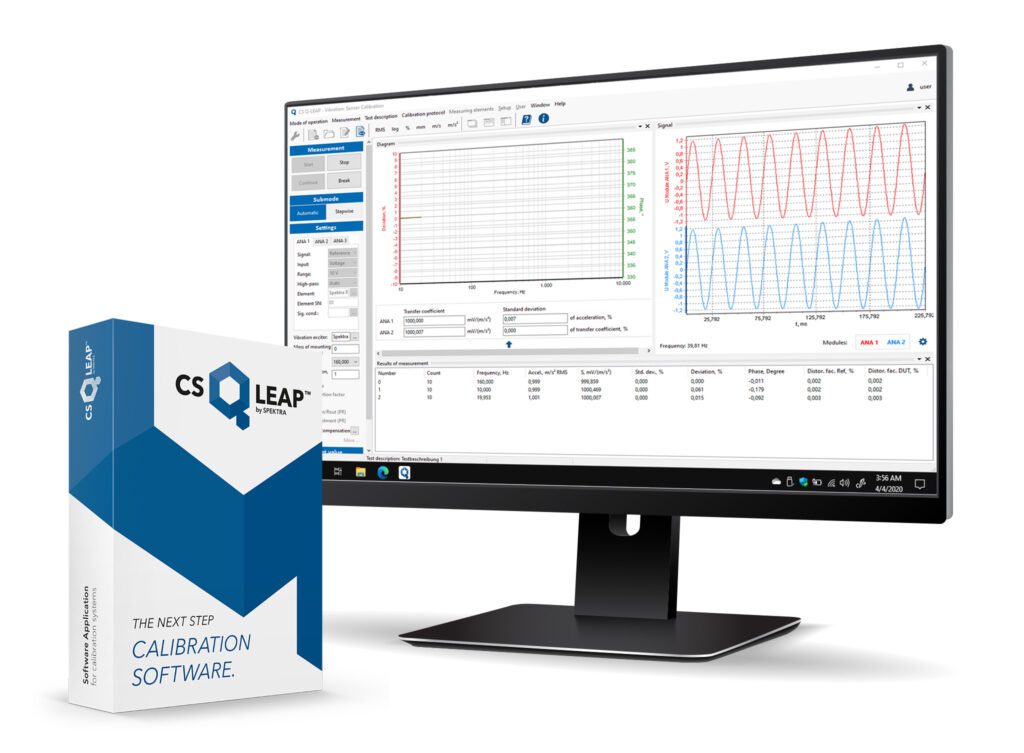

CS Q-LEAP™ software
- sine calibration
- sine sweep
- vibration measurement
- vibration generation
- more information
Typical DUTs
- gyro transducers (angular velocity)
- Inertial Measurement Units (IMU)
- rotation rate measuring systems
Standards
- ISO 17025: General requirements for the competence of testing and calibration laboratories
