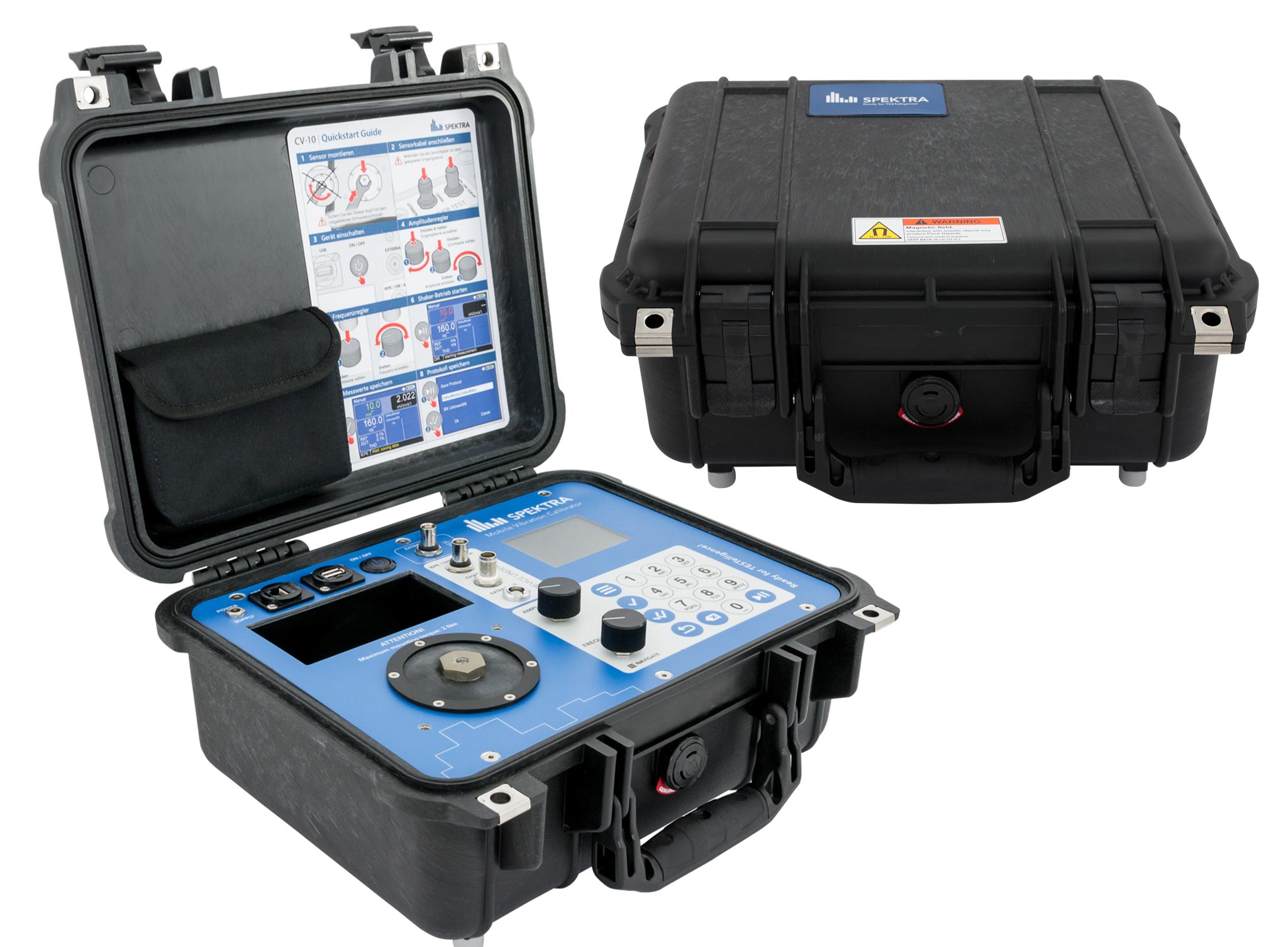

Calibration of acceleration sensors CV-10

The CV-10 was specifically designed to simplify your on-site calibration of accelerometers, proximity probes, velocity sensors and many more. An extensive, portable and lightweight calibration system, traceable to NIST and PTB, delivered in a rugged case – and available at low investment costs. Only 9 kg, up to 10 hours battery driven operation and powerful vibration exciters are just a few of numerous reasons why the CV-10 is the right choice for many industries like automotive, aviation, construction, condition monitoring or research and development. Accessories like the accessory set for proximity sensors or an extension module for PR sensors complement the CV-10 useful.

Product Details:

  • Frequency Range: 5 Hz … 10 kHz
  • Max. Stroke (peak-peak): 5 mm
  • Max. Amplitude: 200 m/s²
  • Standard Signal Conditioner: DIR, ICP, CHA
  • Max. Payload: 900 g
  • Weight: 9 kg

Your Advantages:

  • Fully operational in a rugged case
  • Easy to understand and user-friendly interface
  • Smart data processing and system integration
  • Connectivity via Ethernet (WiFi as option)
  • Transfer data to other SPEKTRA systems
  • Comprehensive integrated signal conditioners e.g. for PR sensors (option)

Applications

  • calibration of accelerometers, proximity
    probes and vibration velocity sensors
  • on-site calibration of vibration meters and
    vibration test beds
  • vibration test system for small devices

Selected Data

  • battery operation up to 10 h
  • payload, max.: 900 g (1.9 lb)
  • acceleration, max.: 200 m/s2 (20 gn)
  • frequency range: 5 Hz…10 kHz
  • powerful vibration exciter

Features

  • integrated signal conditioners
    • voltage, charge, IEPE, 4 mA…20 mA
    • amplifier for PR transducers (option)
  • extension port for future options
    (e.g. special sensor power supplies)
  • rugged case for daily on-site operation
  • traceable to PTB, NIST etc.
  • easy data exchange via USB
  • expandable with future options
